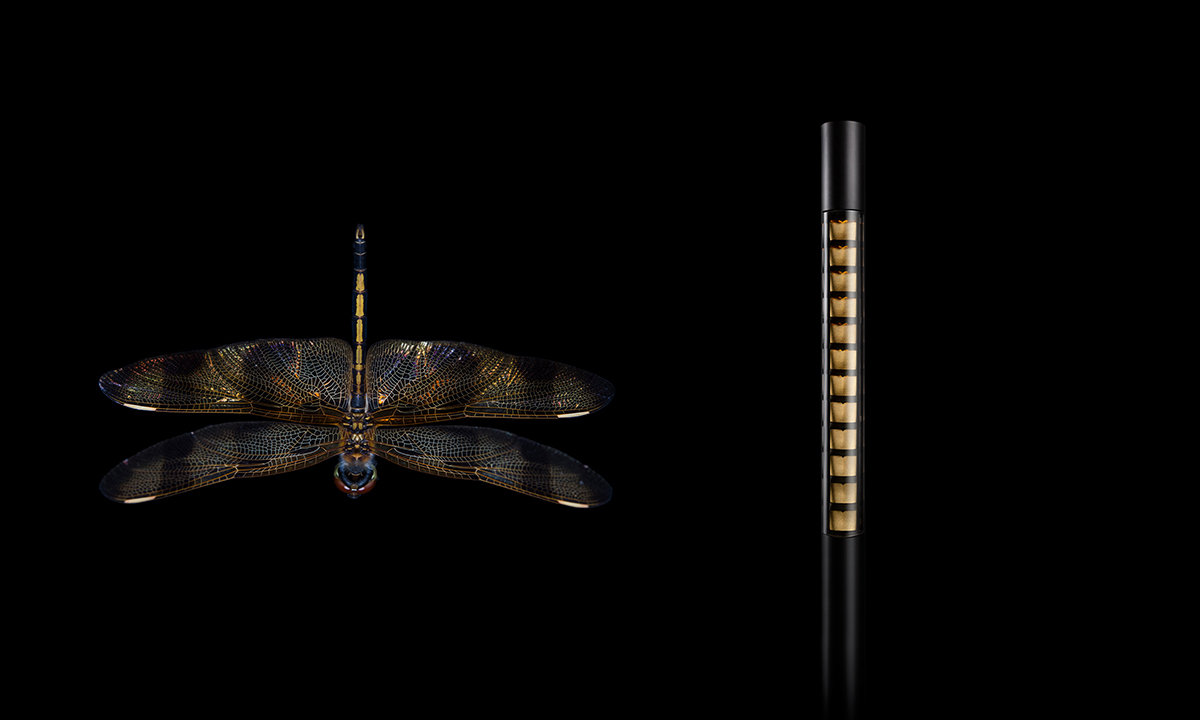

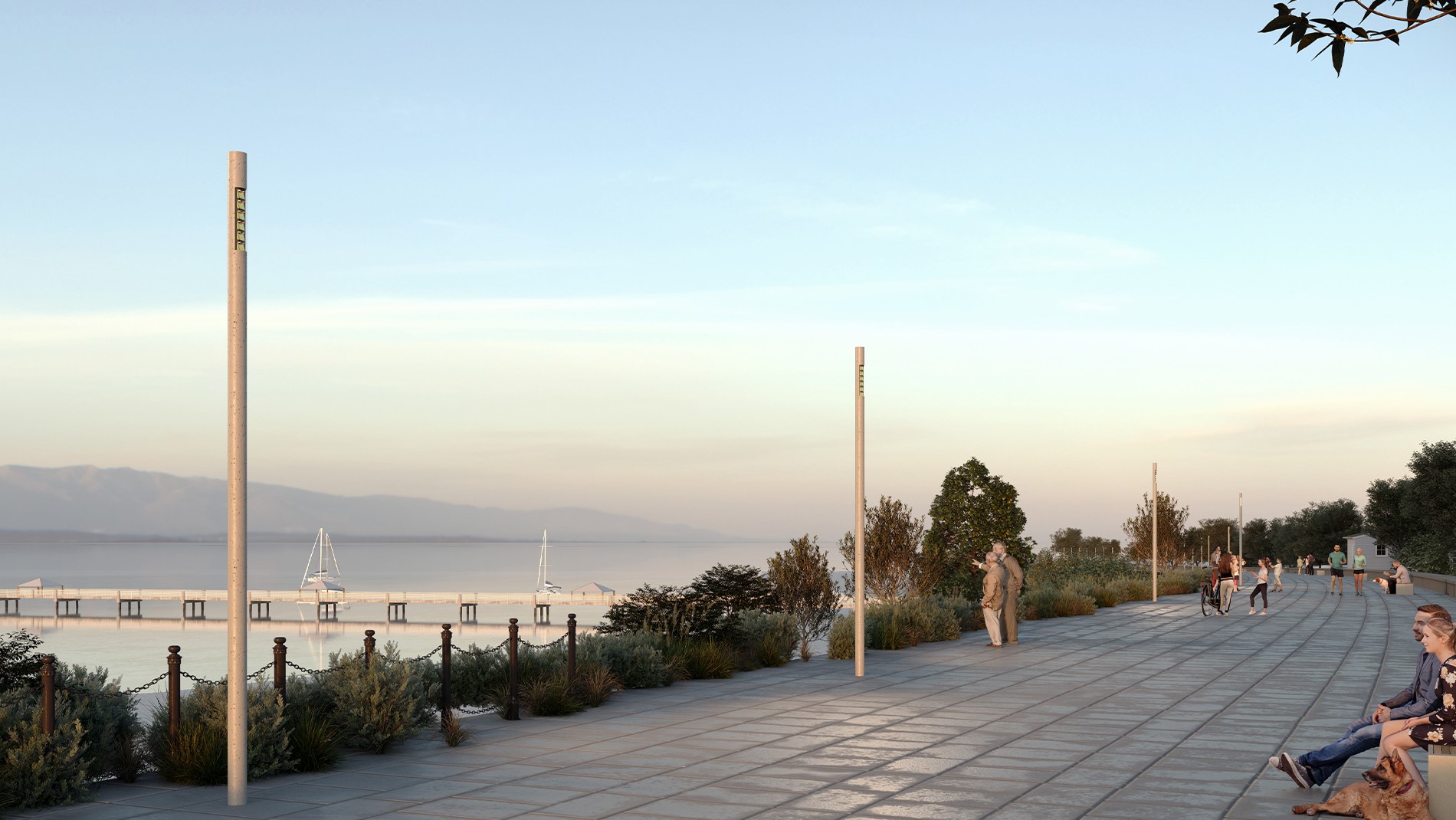

The new Line luminaire family takes a tadical approach to sustainability: a timeless, minimalist design for a long service with reduced material consumption and high lighting quality. It is based on a completely rethought basic concept that forgoes a conventional luminaire head and integrates the optics as a vertical line in the pole.
The Line universal toolkit also includes vertical,
linear optic modules for mounting on or on top
of existing poles. Streets and paths can thus
be outfitted with innovative lighting technology cost-effectively.
With the right choice of material and optics,
the extremely reduced form of Line fits like a

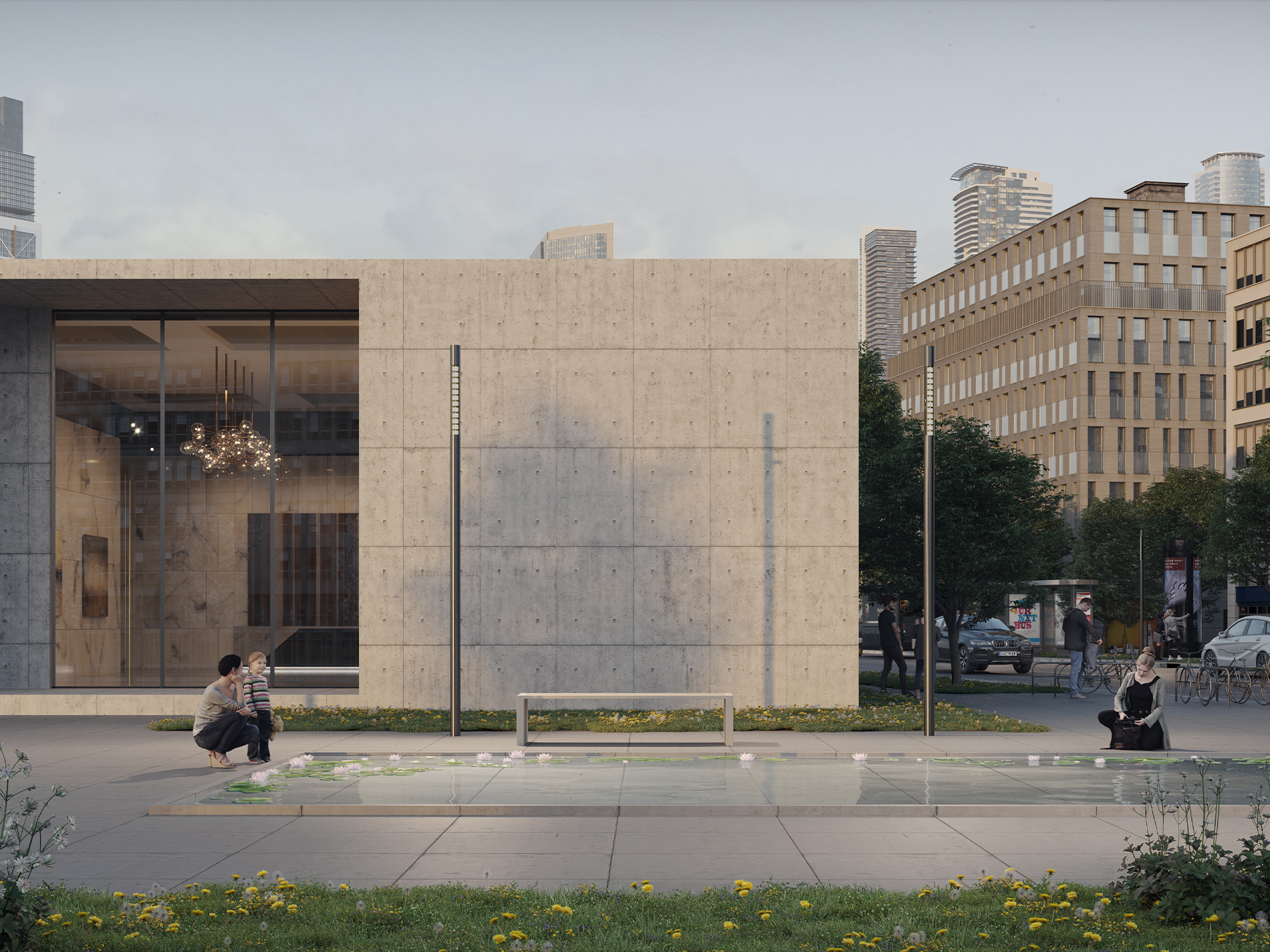

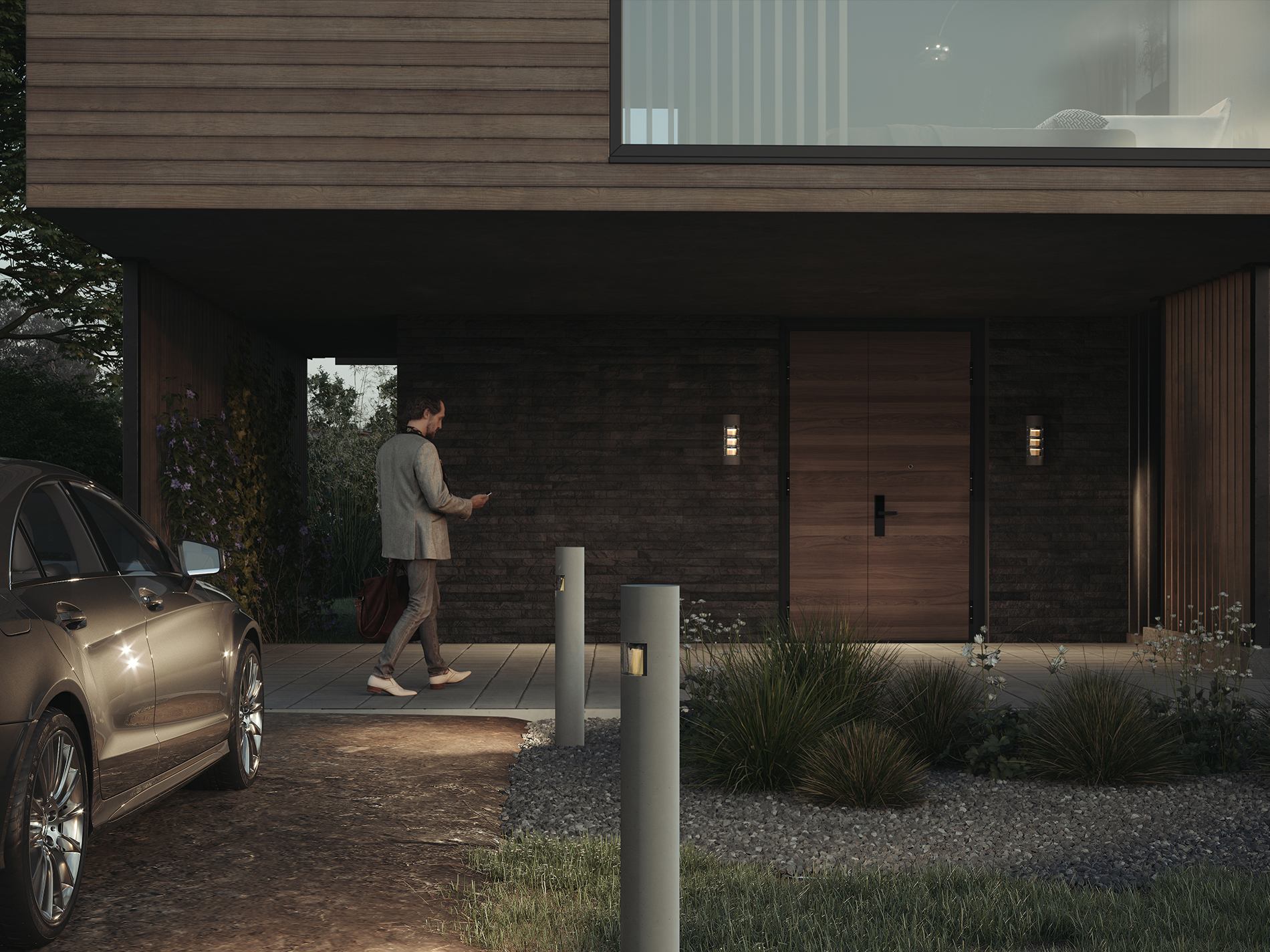

glove with architecture. The bollard, wall-integrated and wall-mounted luminaires in
this series are thus the perfect tools for lighting buildings close up.
Created for timeless applications with a high demand for lighting quality. Thanks to the modular construction and

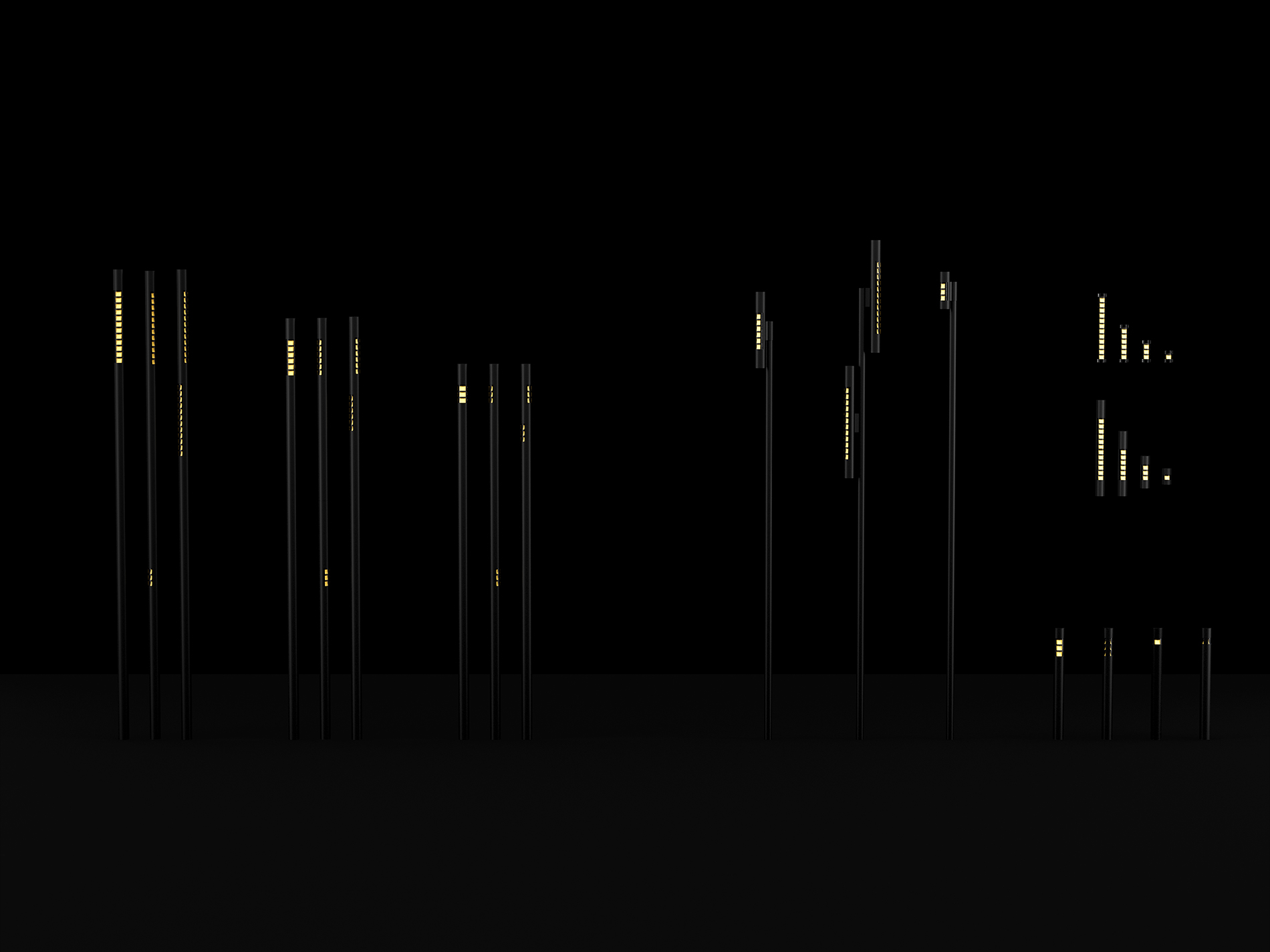

smart functionality, planning with the Line has no boundaries.- Light columns/Pole luminaires max. 7000mm- Bollards 600, 800, 1000, 1200mm- Wall-recessed and

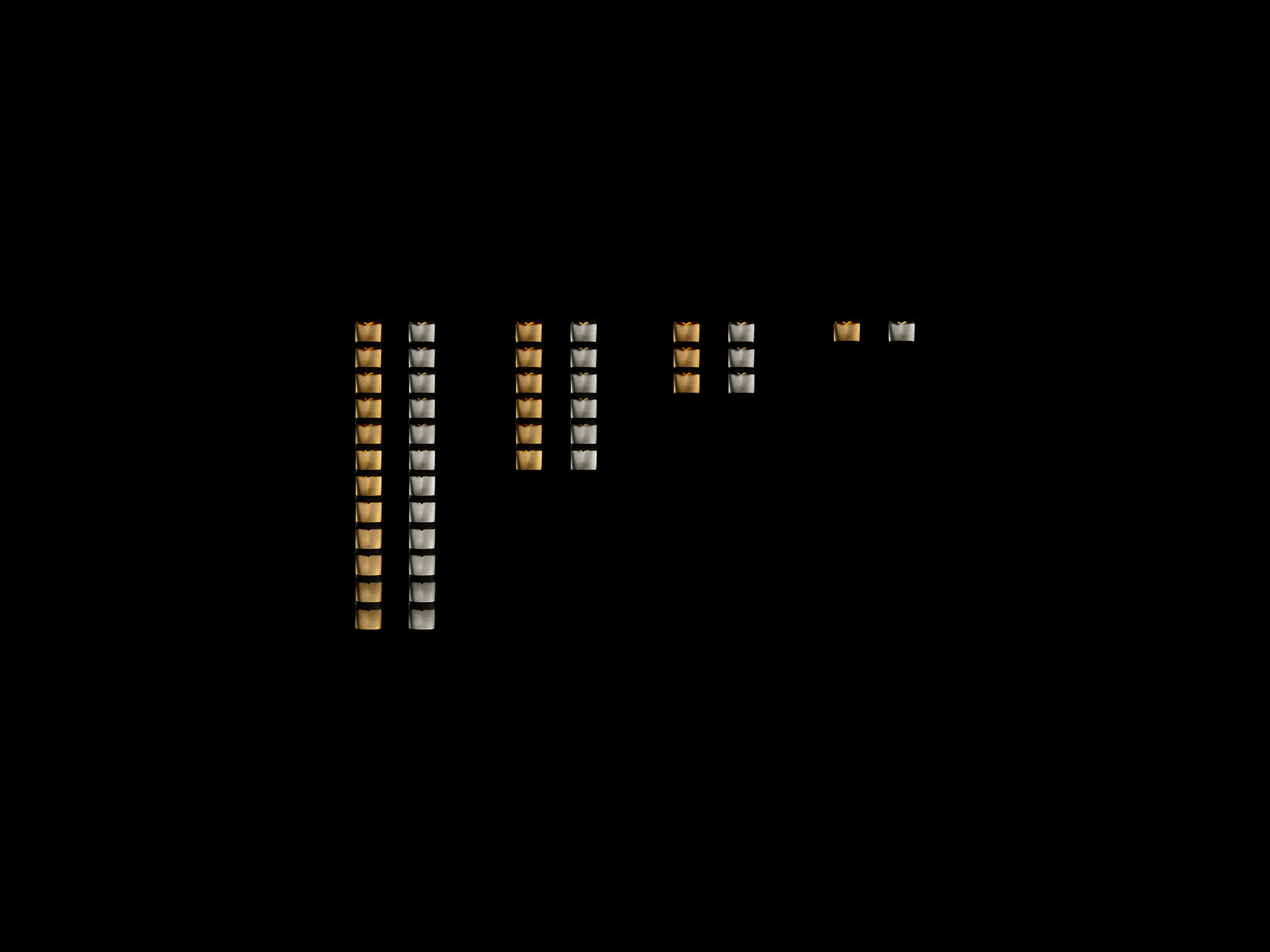

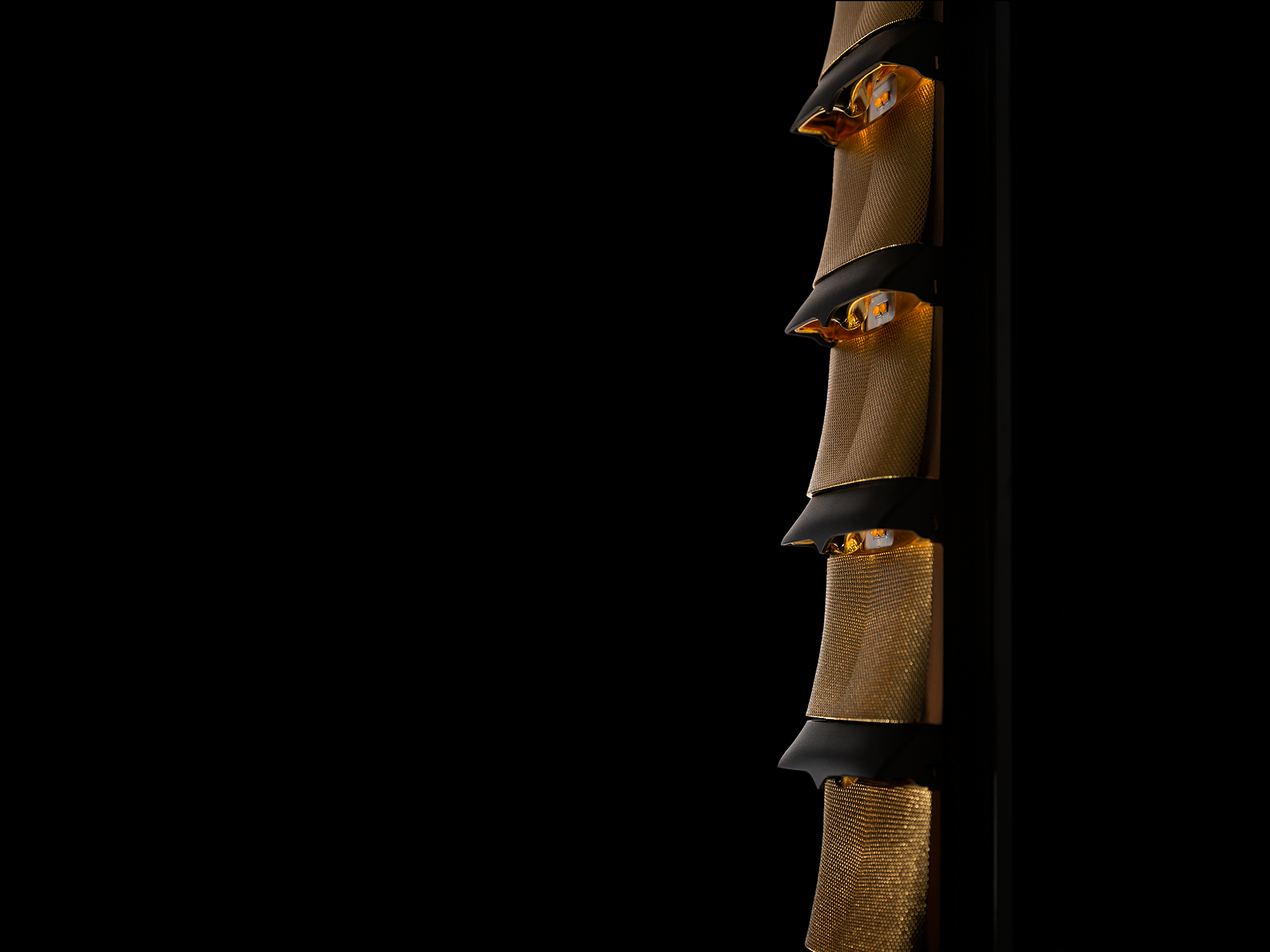

The optic modules are available in four module sizes with light outputs scaled accordingly. The
modules have innovative microfacetted gold
or silver reflector systems with engineered light
distribution to illuminate streets, paths, squares
_Max light outputs:
6000lm - M123000lm - M61500lm - M3500lm - M1

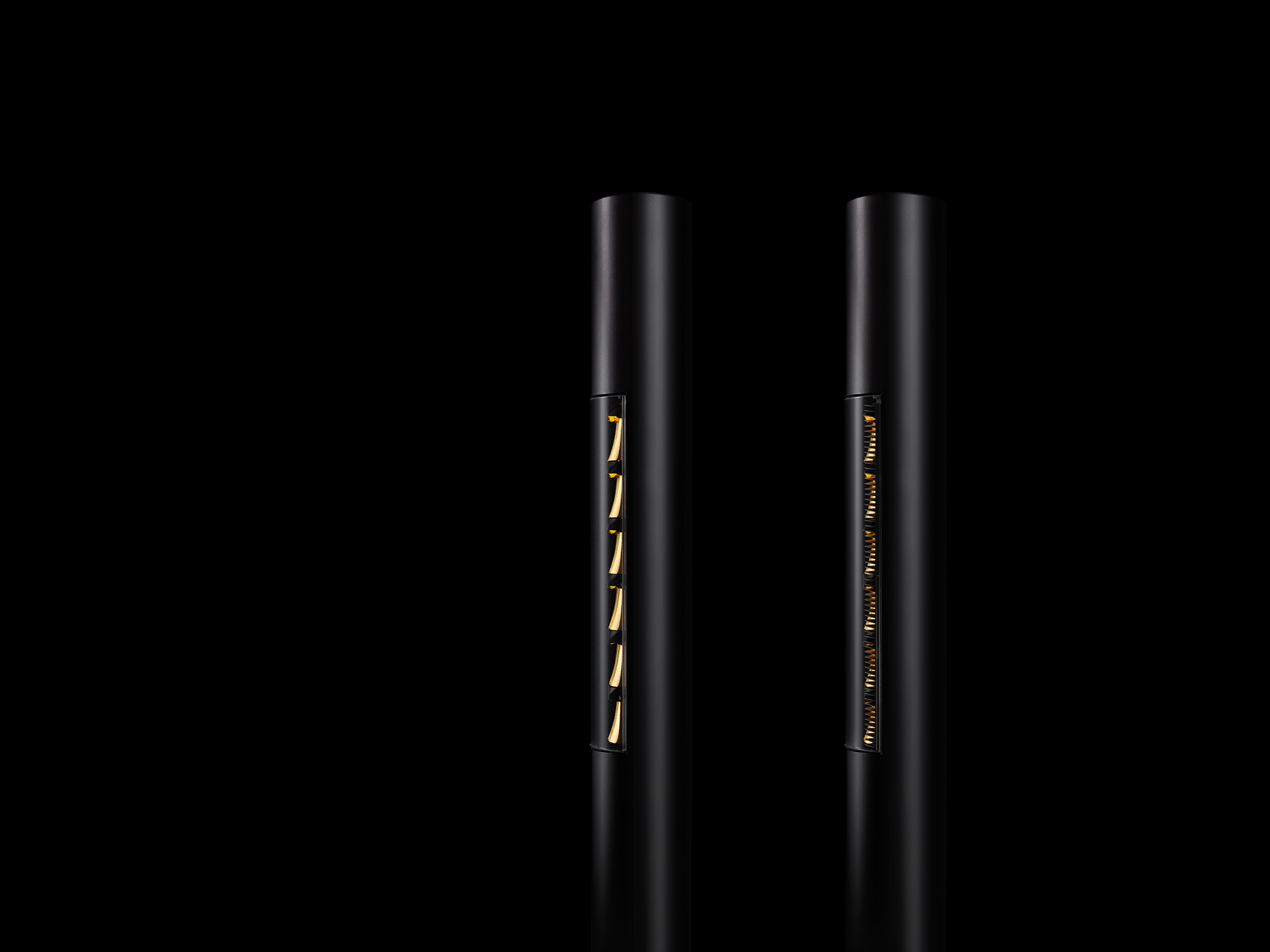

To meet individual needs all the optics are
available in two different versions: a performance
version that is, performance-driven lumen output and efficiency,
and a Comfort design with light guiding louvers,
which guarantee exceptional visual comfort. This ensures efficient compliance with lighting
standards even when using widely spaced poles,
and allows areas with lower mounting heights
and higher requirement in terms of visual
comfort to also be illuminated in a people

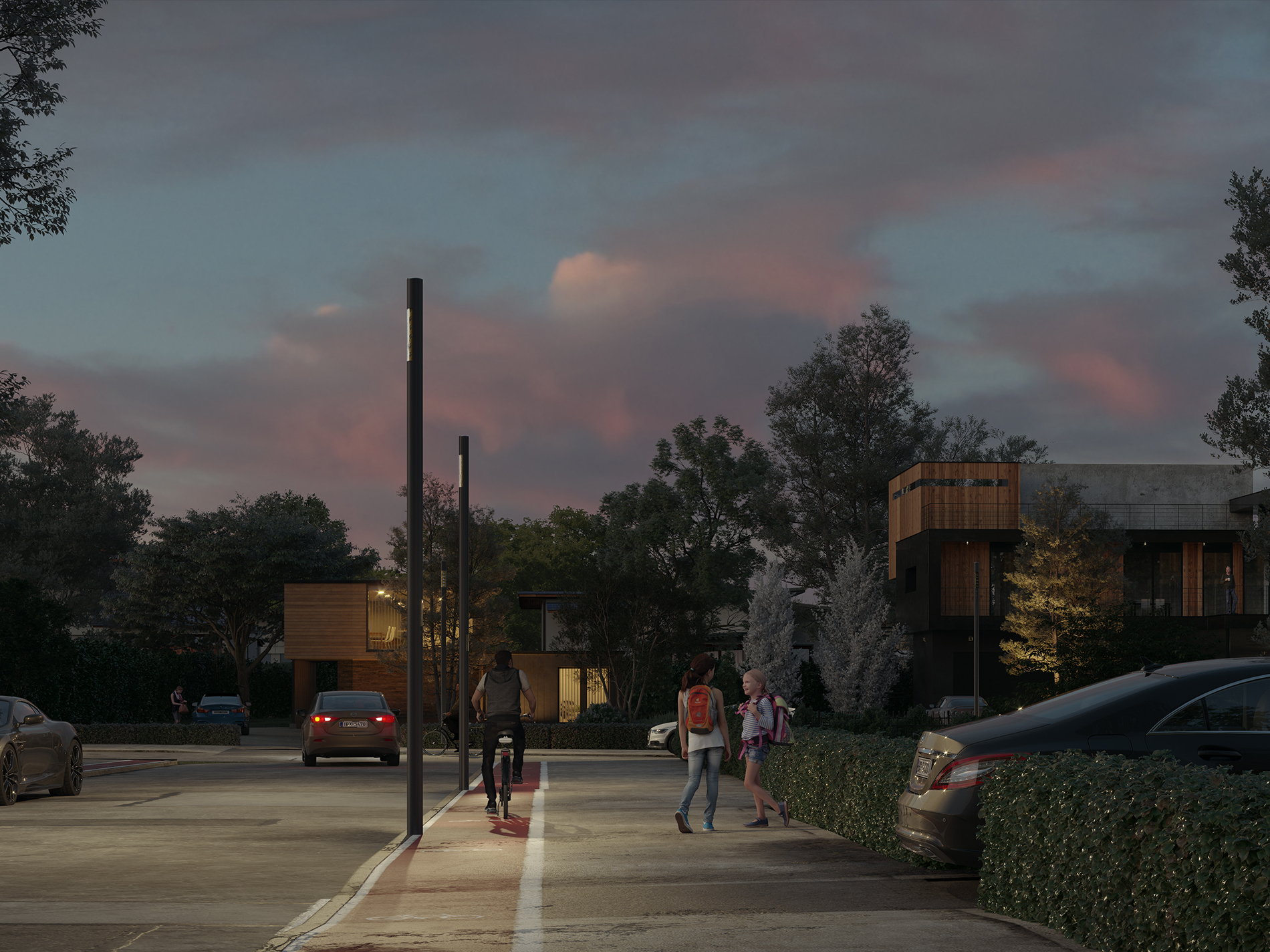

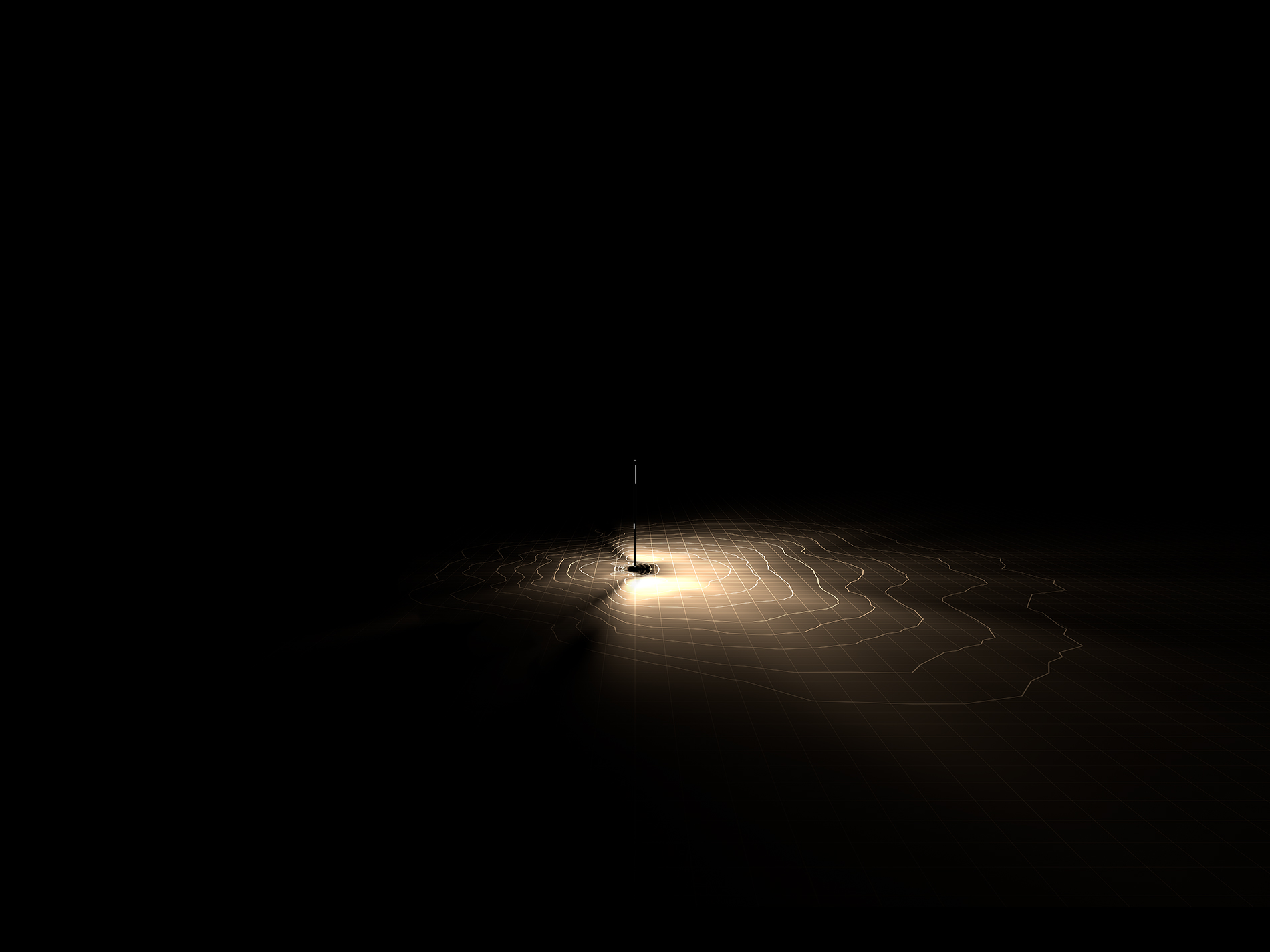

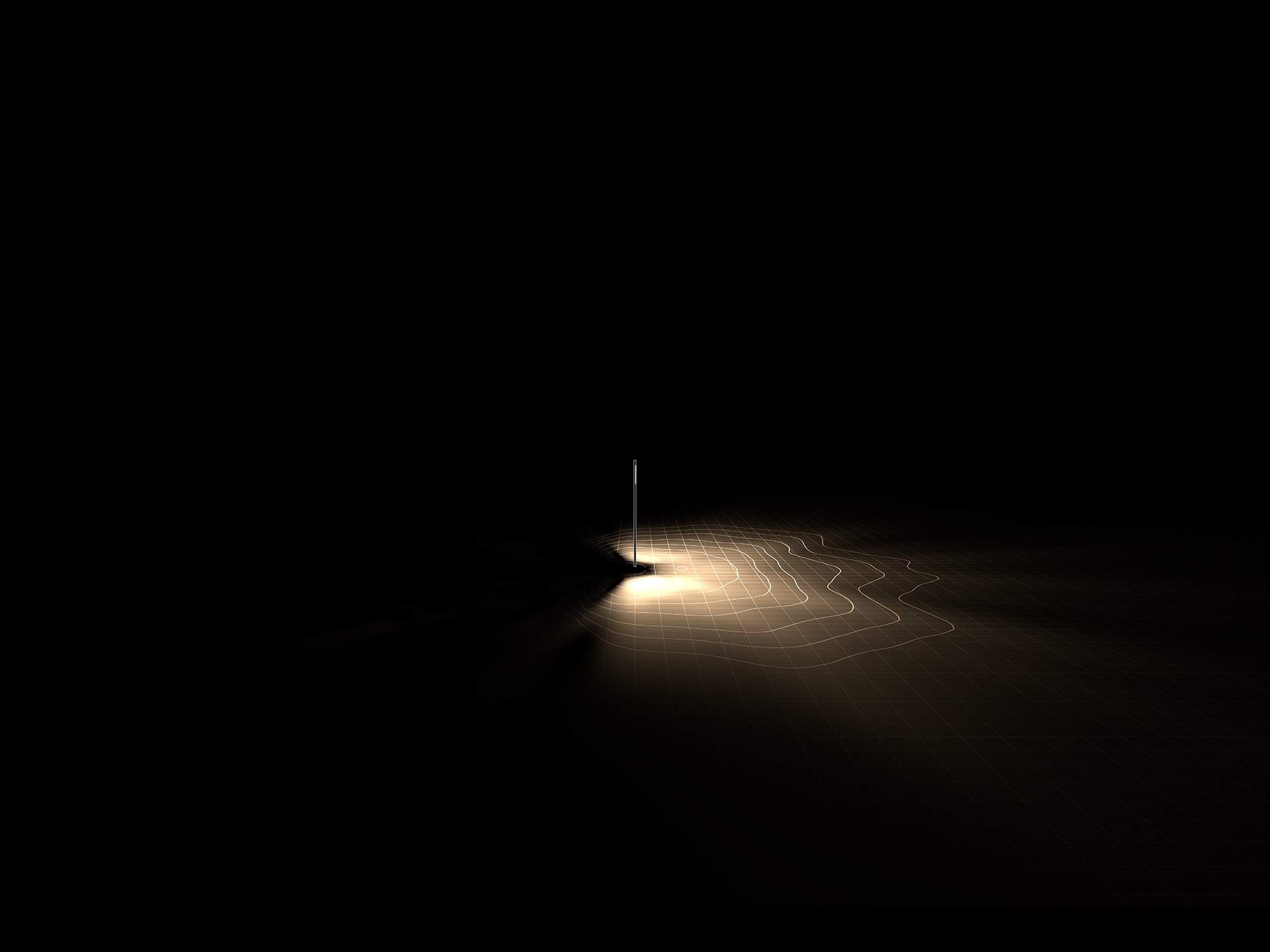

A single optic creates pure light for
asymmetric illumination. Three standard light distributions are available:

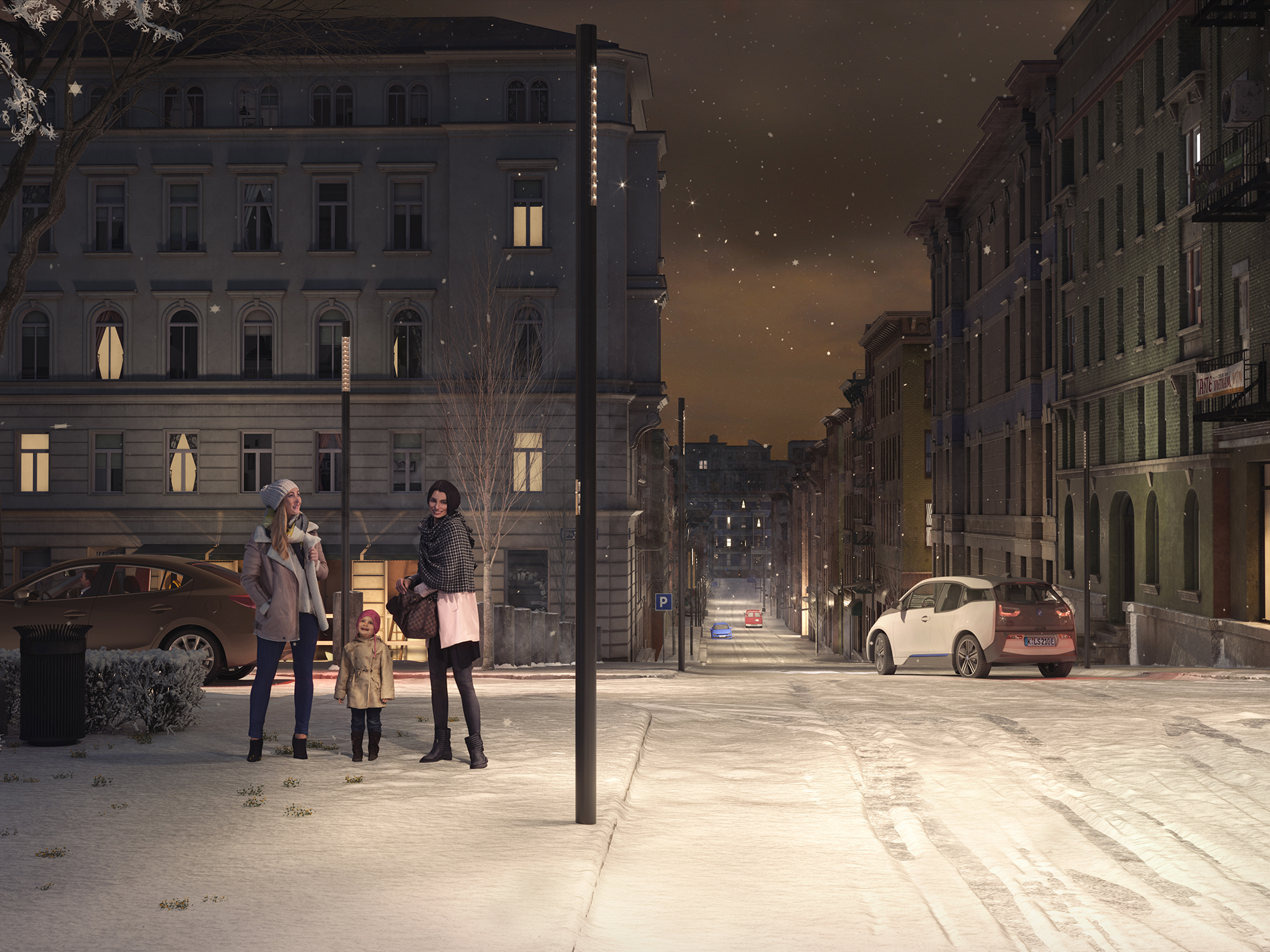

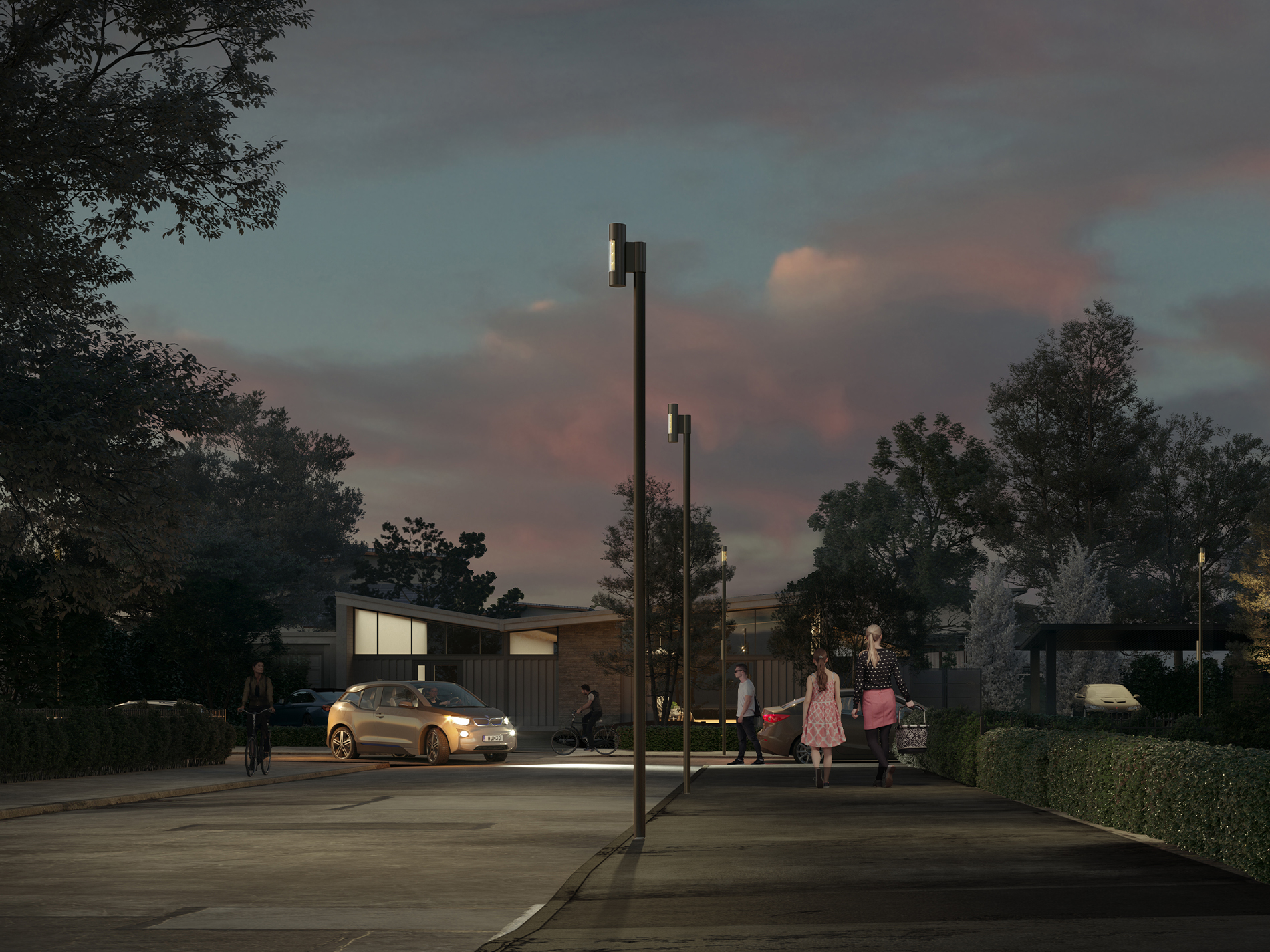

Two optics in a single light
point illuminate both the street and
pathways in compliance with standards.

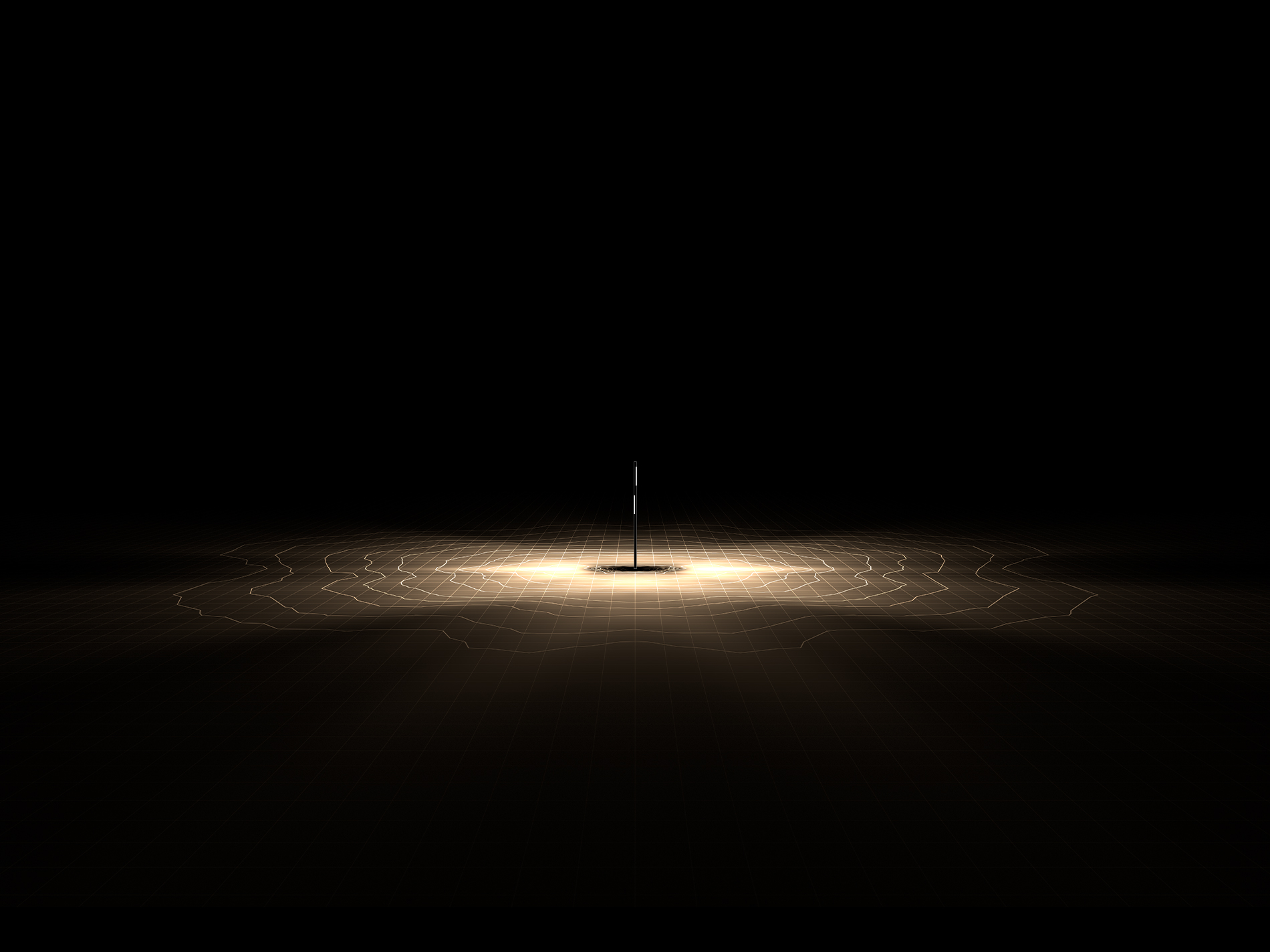

Combining two optics in a column creates

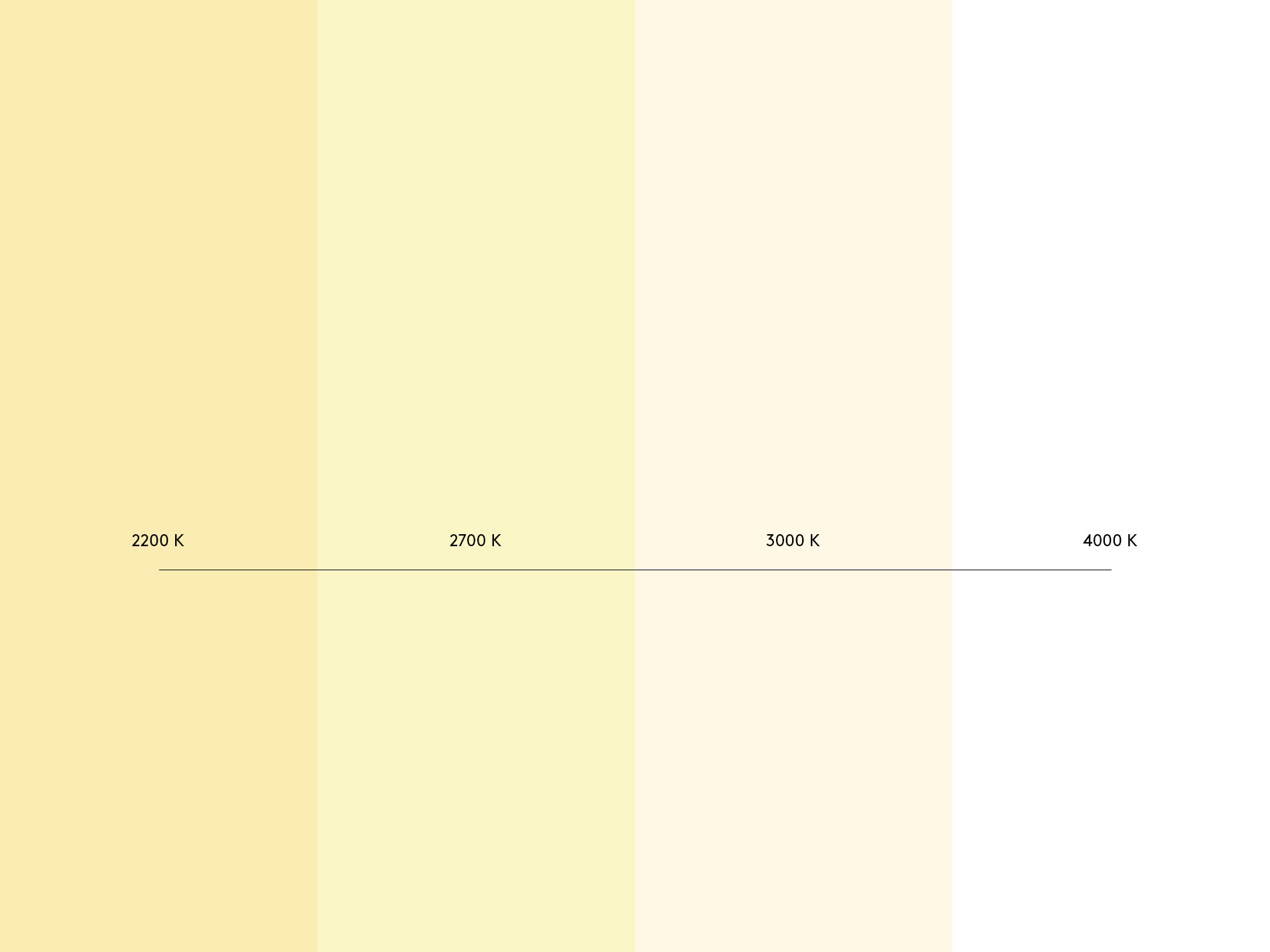

reflectors combined with warm light colours like 2200 K or 2700 K
consider the needs of wildlife and ensure a pleasant lighting mood
and a sense of well-being. Thanks to precision optics, the Line does
not produce any disturbing stray light and thus protects private
spaces and the night sky from light pollution.

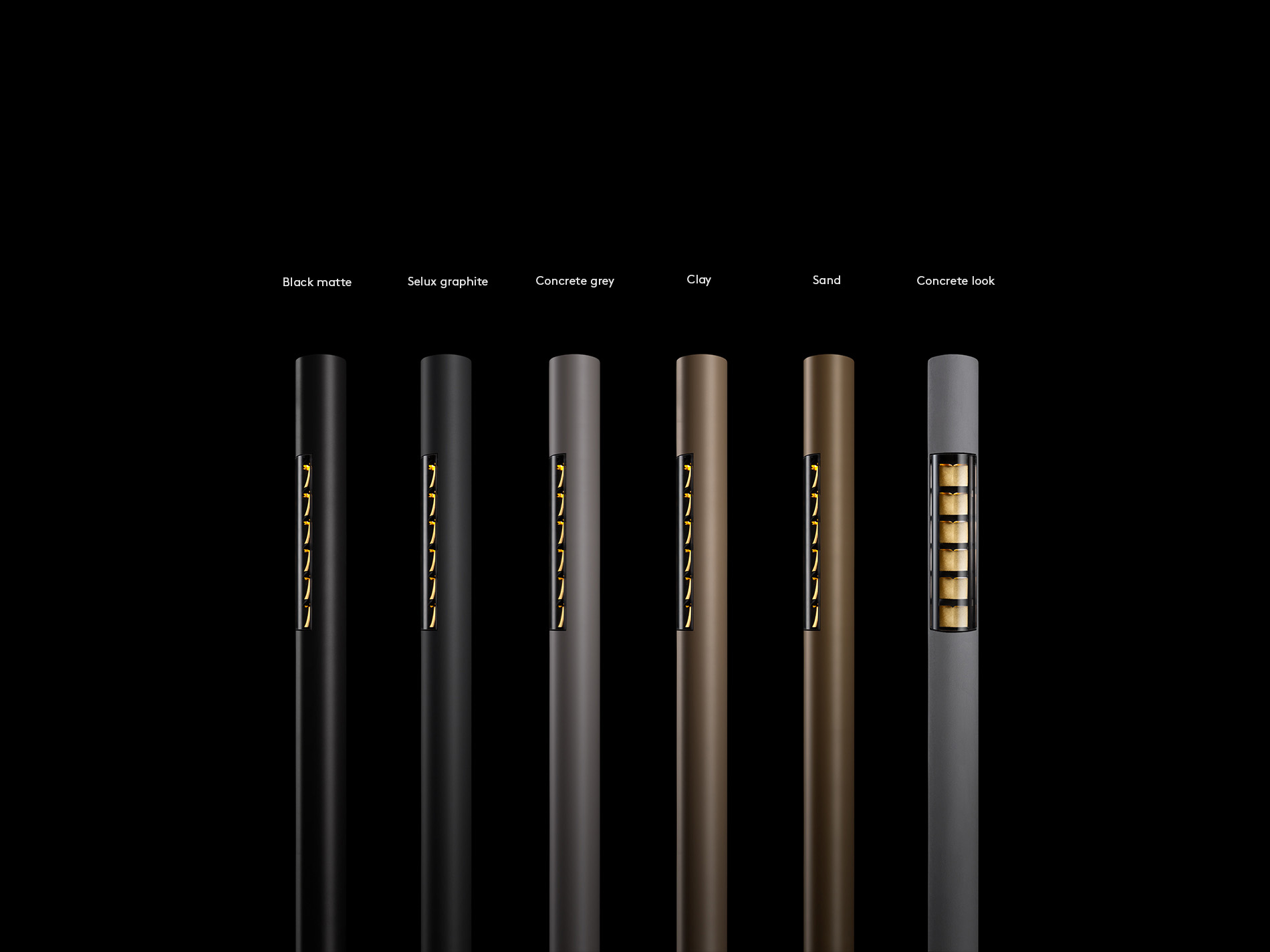

In addition to steel, there is also a special edition concrete-look finish
for the Line. The look of both materials can be customised to no end. A comprehensive palette of colours
allows different characteristics to be achieved, from harmonious colour
tones to contrast-rich accents, as well as a choice of surface finishes
such as matte, gloss or a metallic effect.
Smart City functions can be installed via an optional Zhaga
If required, the optics can also be easily exchanged, making
Also suitable for the use with control, to regulate the lighting needs-based and additionally save energy and costs.
The components of the Line are sourced almost exclusively in Germany
– short travel distances allow for even more sustainability. We
manufacture the luminaire in our own factory near Potsdam.
However, on request, we also support the research for local
manufacturing partners in their region to ensure that the steel
componenents of the Line (mast, gear tray, connections) is
manufactured locally. In this case, Selux supplies the optics, the
drivers and the know-how.
We offer a 20-year guarantee for the delivery of spare parts.
